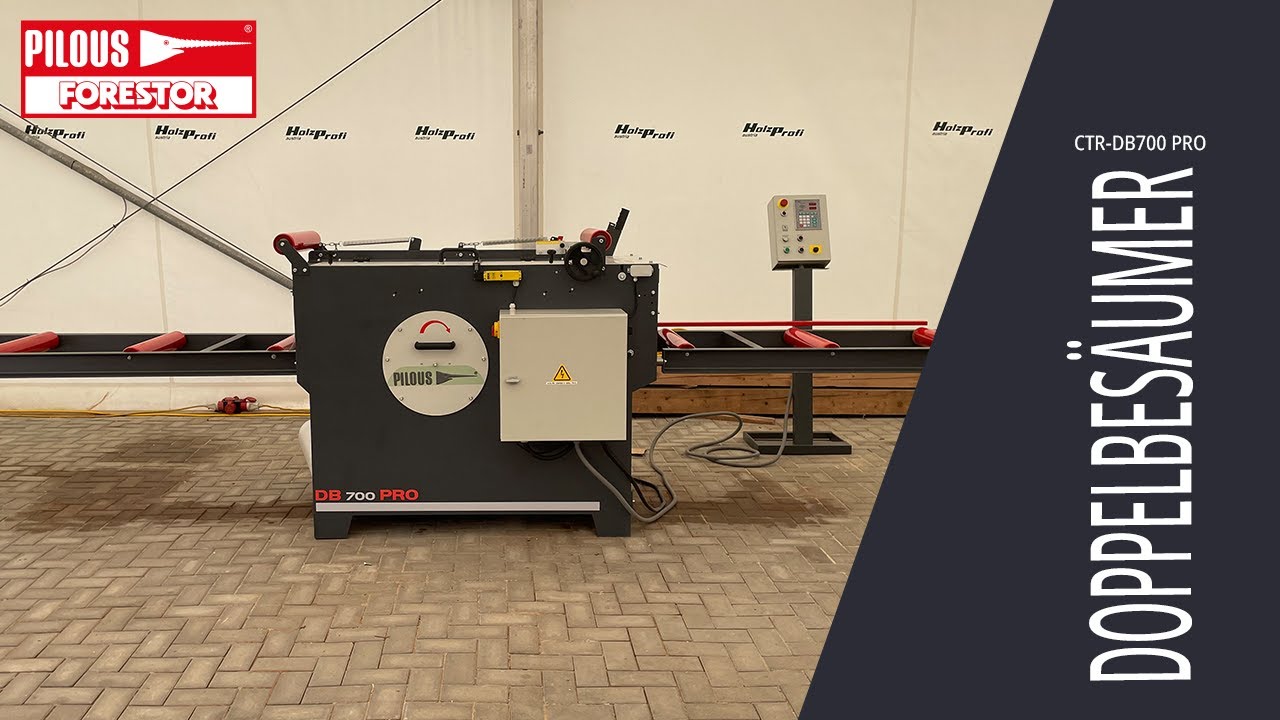

Double edger CTR-DB700PRO

Article Nr:CTR-DB700PRO
EAN:48057500401988
The new Pilous double edger DB700Pro is characterized by the best functionality and long service life thanks to its solid construction.
4 rows of anti-kickback technology, multiple emergency stop switches and extra hardened saw shaft.
4 actively driven steel feed rollers below, 2 actively driven steel rollers above, with control panel
2 return rollers on the machine for easy work processes.
2 lasers (1 x fixed, 1 x adjustable)
editing computer


Technical datas:
Band width 700 mm
Cutting height max. 105 mm
Cutting height min. 10 mm
Side fence 1000 mm
Table length 2000 mm
Minimum cutting width 15 mm
Maximum cutting width 440 mm
Width adjustment automatic
Minimum board length 800 mm
Saw blade diameter 2 x 400 mm
Kerf 3,2 mm
Motor 15 kW
Feed speed variable 2 to 18 m/min


Optional equipment:
Engine power 18 kW, recommended for more than 2 saw blades
additional saw blade holder (1 pc.) on a fixed unit
additional saw blade holder (1 pc.) on moving unit
Price: € 21.690,00in stock

+ Includes VAT excludes shipping costs

Doppelbesäumer CTR - DB700PRO - Holzprofi Austria
Doppelbesäumer CTR - DB700PRO - Holzprofi Austria
This is main image!
This is main image!
This is main image!
Doppelbesäumer CTR - DB700PRO - Holzprofi Austria
Doppelbesäumer CTR - DB700PRO - Holzprofi Austria
passage width 700 mm
Cutting height max. 105 mm
Cutting height min. 10 mm
side stop 1000 mm
table length 2000 mm
Minimum cutting width 15 mm
Maximum cutting width 440 mm
width adjustment automatically
Minimum board length 800 mm
saw blade diameter 2 x 350 mm - not included
shaft diameter 50 mm
speed 3500 rpm
kerf 3.2 mm
Motor 15 kW
feed rate Continuously variable 4 to 18 m/min
Dimensions 1700 x 1900 x 1200 mm
Weight approx. 1500 kg
working height 830 mm
